Application of Filtration Trolley

Fluid before putting in service
Transferring Fluid from drums to reservoirs & filtering the same while transferring.
Conditioning the existing Fluid of the system by using as off - line filtration system.
Can be used for Mineral Oils, Water Glycols, Phosphate Easter & Synthetic Fluids.

Unique Features of Sangawar Filtration Trolley

Light weight & portable within built Drip Tray for collection of spilled Oil.
Rugged construction, Spares are easily available.
Spin on Bowl for easy removal for replacement of Element.
Suction Strainer provider for pump protection from catastrophic failures.
Filtration Trolley fitted with DOL Starter, 10 Meter electric cord & 2.5 Meter Suction & Delivery Hoses as standard.
Custom Built can also be manufactured as per customers flow, pressure, process & filteration (in microns) requirement.

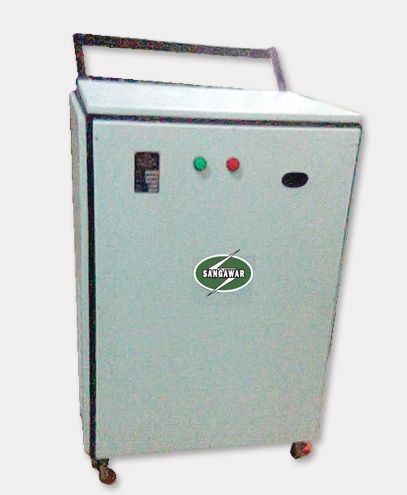

Filtration Trolley

Categories of Filters

Cartridge Filters
Self Cleaning Filter - Manual / Auto
Automatic Backwash Filter
Temporary Conical Strainers
Multi Element Filters
Concentric Filters
Custom Designed
Special Types Filters

Type Strainer

Screwed End

Size

: ½" to 2"

End Connection

: Screwed, Socket weld, Butt weld.

Screen

: Stainless Steel, Brass, Monel etc.

Material

: Carbon Steel, S. Steel, Forged

Y-Type Strainer - Screwed End

Flanged End

Size

: ½" to 10"

End Connection

: Flanged as per ANSI B 16.5, BS or DIN standard, Buttweld.

Screen

: Stainless Steel, Brass, Monel etc.

Material

: Carbon Steel, S. Steel

Y-Type Strainer - Flanged End

Fabricated Design

Size

: ½" to 24" and above

Can be designed to suit customer requirement of free flow area and pressure drop.

Y-Type Strainer - Fabricated Design

Basket Type Strainer

Cast Design

Size

: ½" to 6"

End Connection

: Flanged End, Screwed, Socket weld

Material

: Cast Carbon Steel, S. Steel.

Basket Type - Cast Design

Fabricated Design

Size

: ½" to 24" and above

End Connection

: Flanged as per ANSI B 16.5, BS or DIN standard, Buttweld.

Screen

: Carbon Steel, S. Steel

Material

: Stainless Steel, Brass, Monel etc.

Basic-Type Strainer - Fabricated Design

Duplex Type Strainer/Filters

Cast Design

Size

: 1" to 12"

Material

: Carbon Steel, S. Steel

Change over value

: 3 way Ball valve. Valve can be supplied with Automatic or manually operated

TEE Type Strainers

Size

: ½" to 24" and above

End Connection

: Buttweld, Flanged End.

Filter Element

: Stainless Steel.

Material

: Carbon Steel, S. Steel (Forged / Fabricated)

TEE Type Strainers
